The VMZ BlockHeat awning blind is intended for installation on vertical windows and doors – wooden, PVC or aluminium. It is manufactured to an individual customer order for every window after providing the necessary details such as:

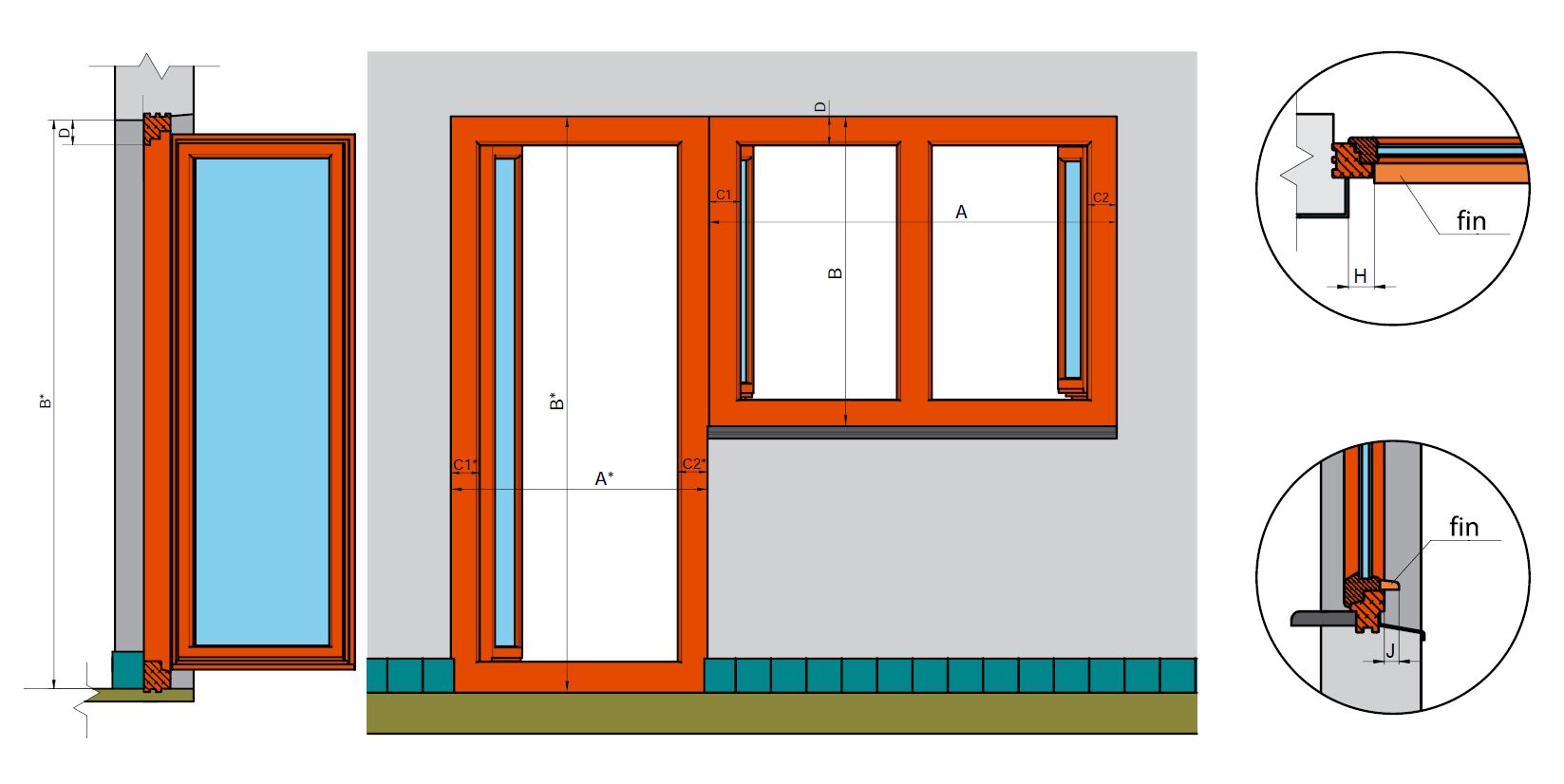

| Dimension | Description | Notes |
| A |
Width of the lining recess |
Minimum width: A min = 500 mm Maximum width: A max = 2000 mm |
| B |
Height of the lining recess |
Minimum height B min = 400 mm For 500 mm ≤ A ≤ 599 mm B max = 2100 mm For 600 mm ≤ A ≤ 1249 mm B max = 2510 mm For 1250 mm ≤ A ≤ 2000 mm B max = 2100 mm |
| C1,C2 |
Width of the visible frame element in the side section |
For C1, C2 < 25 mm installation is more complicated. |
| D |
Height of the visible frame element in the top section |
Height of the cassette is 65mm. In case of D<65 mm cassette will be visible from the room inside after window opening. In case of D > 65mm, access to the bottom bar may be difficult. To enjoy free access to the bottom bar of the awning blind, it is necessary to reduce B size by the difference D - 65mm. |
| J |
Depth of the fin |
In case of the fin a complete unfolding of the awning blind will not be possible. |
| H |
Distance between the fin and the lining |
In case of H≤30 mm the fin will prevent installation of the runners. |
